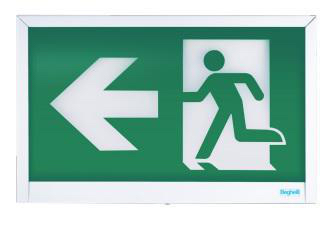

Stella RM Steel LED Running Man

FEATURES & BENEFITS

  • Wall, ceiling or end mounting
  • High-output LED technology
  • 20 gauge steel housing
  • Universal AC or DC input or Self-Powered
  • 120/277/347V
  • CSA 22.2 No. 141-15 Performance Certified

EXTERNAL SPECIFICATIONS

The STELLA is constructed from durable 20 gauge steel. The STELLA comes standard with a white baked powder coat finish. Also available in custom colours upon request. Single, double or universal face versions must be specified. Universal mounting pattern is stamped into the backplate. The self-powered version comes standard with an external LED status indicator and test switch.

BATTERY TECHNOLOGY

Designed with a maintenance free, sealed nickelcadmium battery providing a minimum emergency duration of 90 minutes. An optional 120 minute nickel-cadmium battery is available. Recharge time of the battery is 24 hours.

SUPPLEMENTAL TEXT

A running man sign with supplementary “EXIT” or “SORTIE” text is also available in the STELLA model. To designate “EXIT” add “-E” to the end of the pictogram nomenclature, for “SORTIE” add “-S”. For example, a sign with supplementary “EXIT” text and the indicator down to the right would have “DR-E” as it’s pictogram nomenclature.

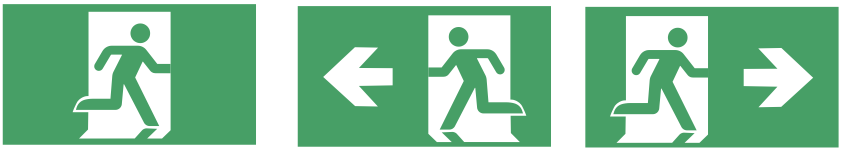

UNIVERSAL PICTOGRAMS

The 0LR(Universal) option includes: a pictogram with no directional indicators, a pictogram with a left facing directional indicator and a pictogram with a right facing directional indicator.

universal pictograms

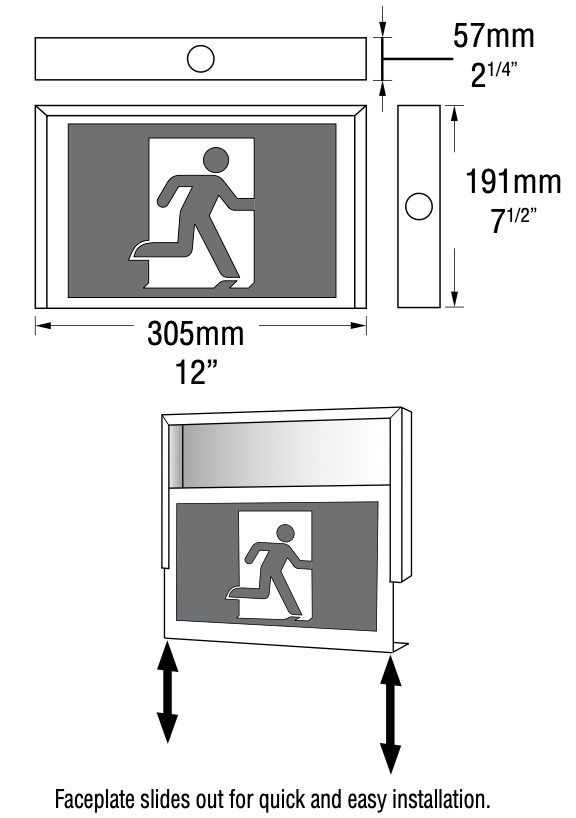

DIMENSIONS

dimensions

Price: $ 215 CAD
