FEATURES & BENEFITS
- Wall, ceiling or end mounting
- Up to 35W lamps
- High-output LED technology
- Up to 6V-50W or 12V-72W capacity
- 20 gauge steel housing
- Fully automatic current limited charger with solid state line latched low voltage disconnect protection
- Operating temperature: +10°C to +40°C
- CSA 22.2 No. 141-15 Performance Certified
EXTERNAL SPECIFICATIONS

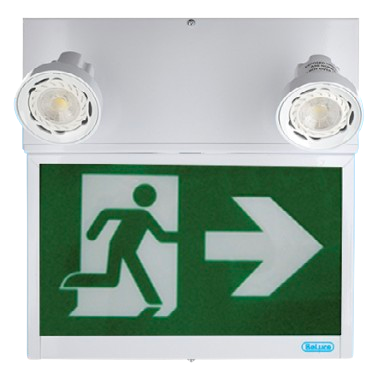

The STELLA COMBO is constructed from durable 20 gauge steel with standard white baked powder coat finish. Available in custom finishes (please specify). Single, double or universal face versions must also be specified. Universal mounting pattern and key hole slots are stamped into the backplate. Standard external LED status indicators and push button test switch. Heads are molded from high impact thermoplastic in a matching colour; SR PAR18 standard.
BATTERY TECHNOLOGY
Designed with a maintenance free, valve regulated sealed lead-acid battery providing emergency lighting duration as specified per unit. Recharge time of the battery is 24 hours.
BELUCE AUTO-TEST (AT)
The system automatically performs one 5 minute discharge test monthly and every 6 months it performs two 30 minute discharge tests, 24 hours apart. This tests both full battery capacity and recharge capability.
SUPPLEMENTAL TEXT
A running man sign with supplementary “EXIT” or “SORTIE” text is also available in the STELLA model. To designate “EXIT” add “-E” to the end of the pictogram nomenclature, for “SORTIE” add “-S”. For example, a sign with supplementary “EXIT” text and the indicator down to the right would have “DR-E” as it’s pictogram nomenclature.
UNIVERSAL PICTOGRAMS
The 0LR(Universal) option includes: a pictogram with no directional indicators, a pictogram with a left facing directional indicator and a pictogram with a right facing directional indicator

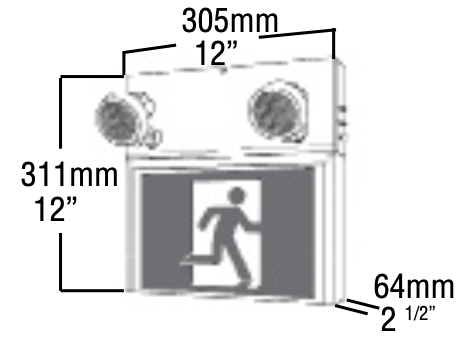

DIMENSIONS
LAMP SELECTION | 6V | 12V |
---|---|---|
Composite Tungsten | 7.2, 9W | 9, 12, 18W |
Quartz (Q) | 12W | 12, 20 (55W, PAR36 only) |
LED-MR16 | 5, 7W | 2, 5, 7W |
MR16 * | N/A | N/A |
LED Module | 2, 3, 4W | 3, 4W |
Sealed Beam LED (PAR36 only) | N/A | 6W |
*MR16 not available in SR head
