FEATURES & BENEFITS
- Universal mounting plate for effortless installation
- OBM option for octagon box mount
- 6V, 12V or 24V up to 720W
- 120VAC removable line cord is supplied standard on voltages up
to 6V on the 36W units, and up to 12V on the 72W units - 18 gauge steel cabinet
- Supplied with two top mounted small style 9W thermoplastic
heads, other lamps available. - Utilizes a temperature compensated charger with low voltage
disconnect protection - CSA 22.2 No. 141-15 Performance Certified
BATTERY TECHNOLOGY
Designed with a maintenance free, sealed valve regulated lead acid battery that provides a minimum emergency duration of 30 minutes (for the listed rating). Ni-Cd batteries are optional. Recharge time of the battery is 24 hours. The maximum battery operating temperature is +25°C and the minimum is +10°C. A +40°C operating temperature is available, please consult the factory.
BELUCE AUTO-TEST (AT) – OPTIONAL
The BeLuce auto-test system automatically performs one 5 minute discharge test monthly and every 6 months it performs two 30 minute discharge tests, 24 hours apart. This tests both full battery capacity and recharge capability.
DIMENSIONS

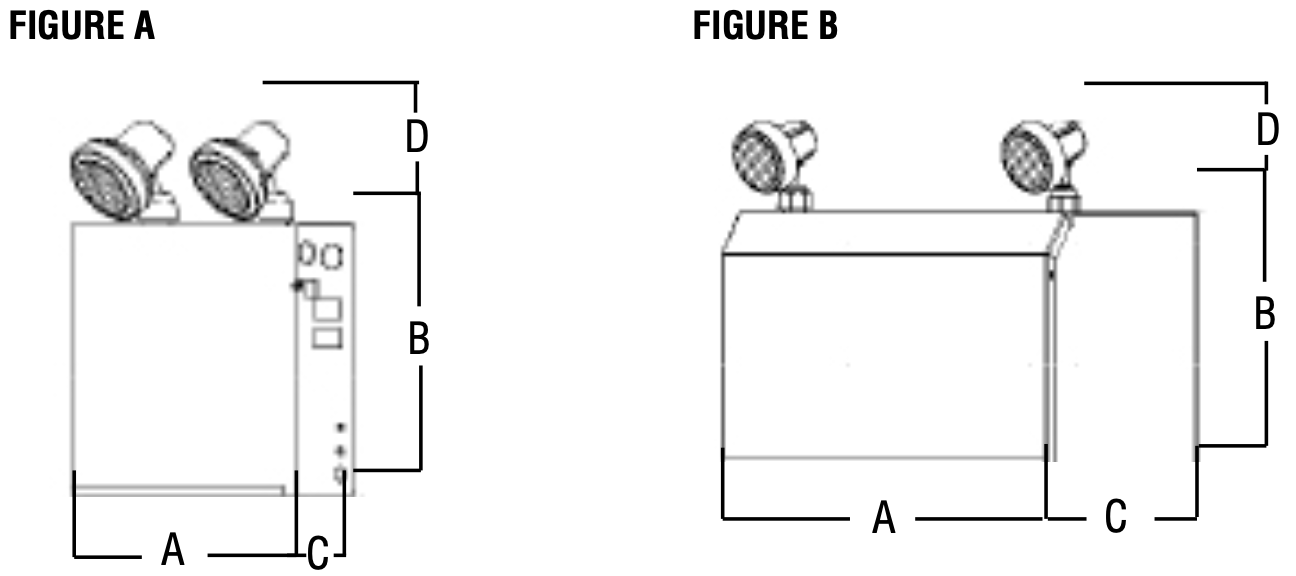

UNIT SIZE | DIMENSIONS | STEEL CABINET GAUGE | FIGURE | |||
---|---|---|---|---|---|---|
A | B | C | D | |||
(6V 18-50W) (12V 36-72W) | 12 1/4” (311mm) | 5” (127mm) | 3” (76mm) | will vary based on heads supplied | 20 | A |
(6V 72-90W) (12V 100W) | 10” (254mm) | 9” (228mm) | 3 1/4” (82mm) | will vary based on heads supplied | 20 | A |
(6V 100-180W)(12V 120-300W)(24V 144-320W) | 13 1/2” (343mm) | 10 1/8” (257mm) | 4 1/4” (108mm) | will vary based on heads supplied | 18 | B |
(12V 360W) | 13” (330mm) | 10 1/8” (257mm) | 8 1/2” (216mm) | will vary based on heads supplied | 18 | B |
(24V 350-720W) | 18 1/8” (460mm) | 10 1/8” (257mm) | 8 1/2” (216mm) | will vary based on heads supplied | 18 | B |
LAMP SELECTION | 6V | 12V | 24V |
---|---|---|---|
Composite Tungsten | 7.2, 9W | 9, 12, 18W | 9, 18W (PAR36 only) |
Quartz (Q) | 12W | 12, 20 (55W, PAR36 only) | N/A |
LED-MR16 | 5, 7W | 2, 5, 7W | 5, 7W |
MR16 * | N/A | 50W | N/A |
LED Module | 2, 3, 4W | 3, 4W | N/A |
TES | N/A | 5, 9, 14, 30W | 5, 9, 14, 30W |
Sealed Beam LED (PAR36 only) | N/A | 6W | 6W |
*MR16 not available in SR head
ORDERING GUIDE
SERIES | OPERATION | CAPACITY | HEADS | LAMP TYPE | AC VOLTAGE | OPTIONS |
---|---|---|---|---|---|---|
NV | 6 (Volt DC)
12 (Volt DC) 24 (Volt DC) |
See model rating guide | 0 (None)
1SR (Plastic, 1 head) 2SR (Plastic, 2 heads) 1BTMR (Metal, 1 head) 2BTMR (Metal, 2 heads) 1LR (PAR36, 1 head) 2LR (PAR36, 2 heads) 1TESSQ (One head, HO) 2TESSQ (Two heads, HO) |
See lamp selection | 120/347V
120/277V 347V 120V 120/277/347V |
NC (Ni-Cd batteries – refer to page 3)
CC (Custom colour – specify) CC (Custom colour – specify) 7TLP (Twist lock plug – 120V only) 7CT (Cabtire cord set – 120V or 347V only) 2OBM (Octagon box mount) 3,7LC (Line cord – 120V only) AT (Auto-test self-diagnostics-specify voltage) 8RFS (Radio frequency suppression) 6IRT (Infra-red remote test) 6IRT (Infra-red remote test) MS (Mountingshelf-refertomountingshelfspecpage) HHC (Hand held controller) SM (Side mount heads) 5A (Ammeter) 1TD (Time delay – specify 5, 10, 20 mins) LD (Lamp disconnect) WG (Wire guard-refer to wire guard spec page) 5ACTB (Terminal block AC) 5DCTB (Terminal block DC) BD (Battery disconnect) CPS (Constant power supply – 120V only) ADA (Audible alarm) 4FAI (Fire alarm interface – specify type) 5FD5 (5 circuit fuse distribution) 120/277V (120/277V input) TP (Tamper proof screws) 5V (Voltmeter) HT (High operating temperature) ZSP (Zone sensing panel) refer to Senso catalogue |
NOTE: Small charger 120/277/347V used with 6V50W, 12V120W and below. Large charger 24V, 6V72W, 12V150W and above. 1Single AC voltage must be specified; 2No line cord with 6V36W, 12V72W and below; 3Default line cord for 6V36W, 12V72W and below; 4Specify open/closed/12-24 VDC. Open and close is available in 120V only; 5Not available with 6V50W or 12V36W and below; 6120V or 347V only; 7CT and TLP not available with LC; 8120V, 347V only. Not available for 6V50W, 12V72W and below.
